SonarHub Module

SKU: 000-11142-001

Compatible with the complete line of Simrad NSS Sport, NSE Expert and NSO Offshore multifunction displays, the plug-and-play network solution makes it easier than ever to identify productive fishing areas with connectivity to the latest Simrad sonar technologies - including StructureScan® HD and CHIRP.
$659

Product details

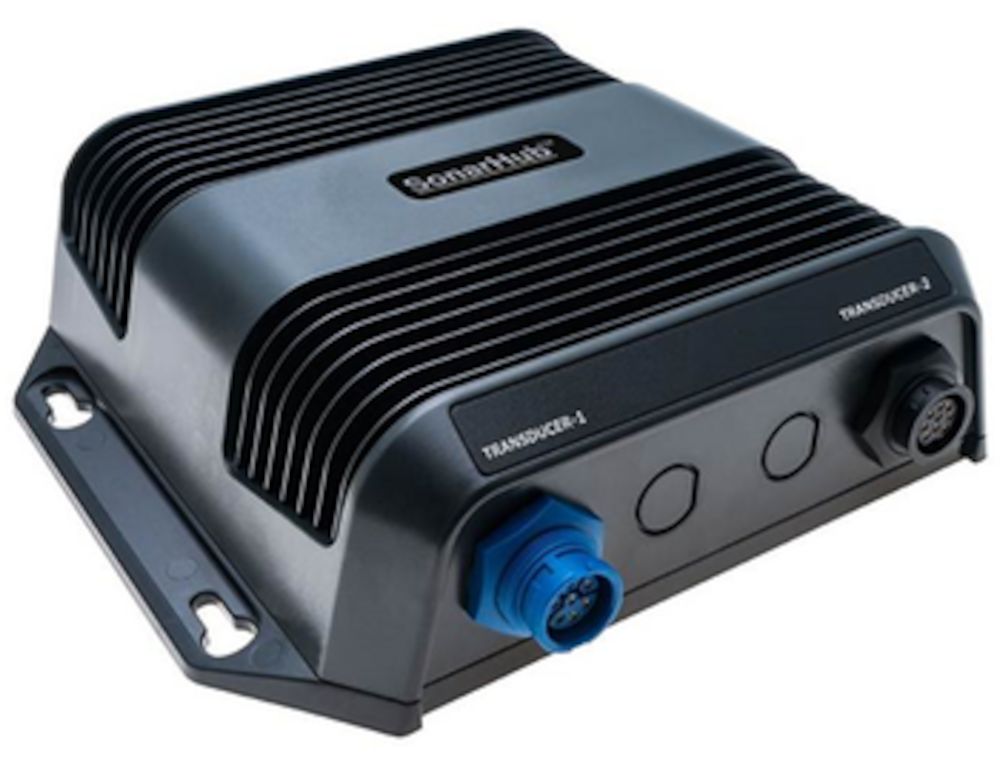

The compact SonarHub™ module provides an all-in-one solution for adding StructureScan® HD and CHIRP sonar capabilities to Simrad NS multifunction displays.

Compatible with the complete line of Simrad multifunction displays, the plug-and-play network solution makes it easier than ever to identify productive fishing areas with connectivity to the latest Simrad sonar technologies - including StructureScan® HD and CHIRP.

The innovative SonarHub module features three built-in Ethernet ports for quick and convenient networking without the need for an extra Ethernet networking module.

Compatible transducers from Simrad Yachting and AIRMAR are sold separately.

Key Features

  • Compact all-in-one sonar module delivers StructureScan® HD and CHIRP sonar technologies.
  • CHIRP sonar with AIRMAR® TM150M transducer delivers extremely efficient pulse generation that provides improved target resolution and noise rejection, as well as wide coverage for perfect arches that clearly identify fish targets
  • StructureScan® HD offers best-in-class, side-scanning range and resolution, plus DownScan Imaging™ to provide crystal-clear, picture-like views of what’s beneath a boat.

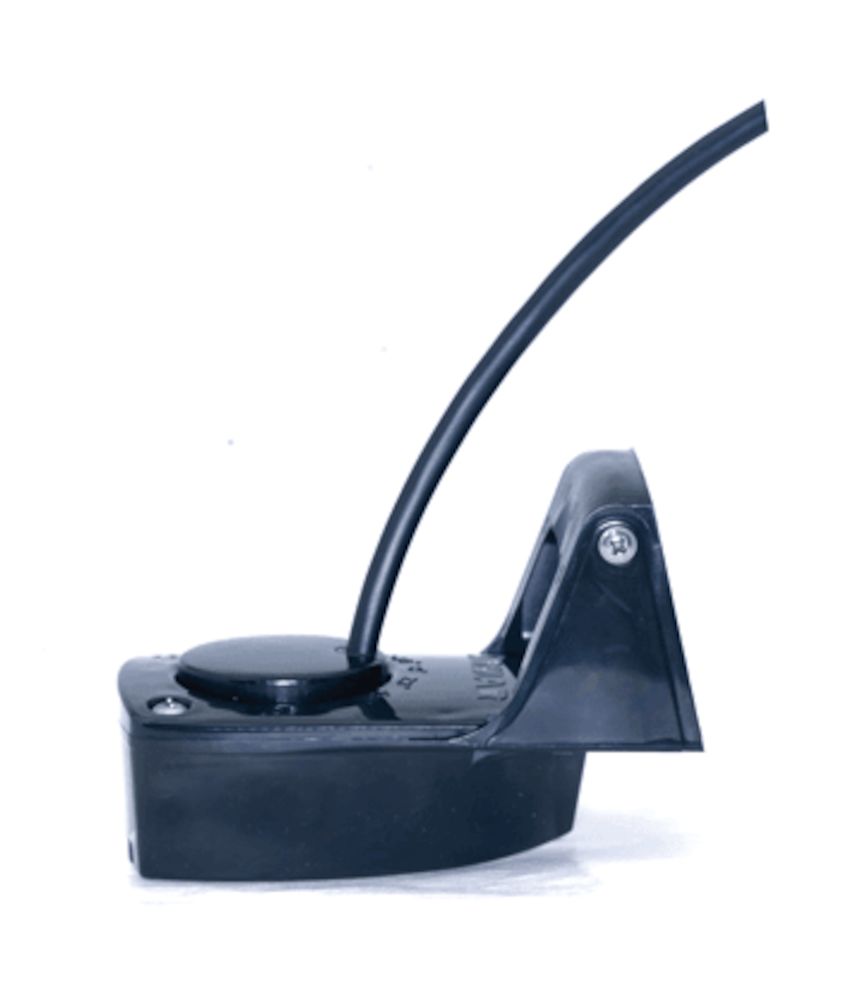

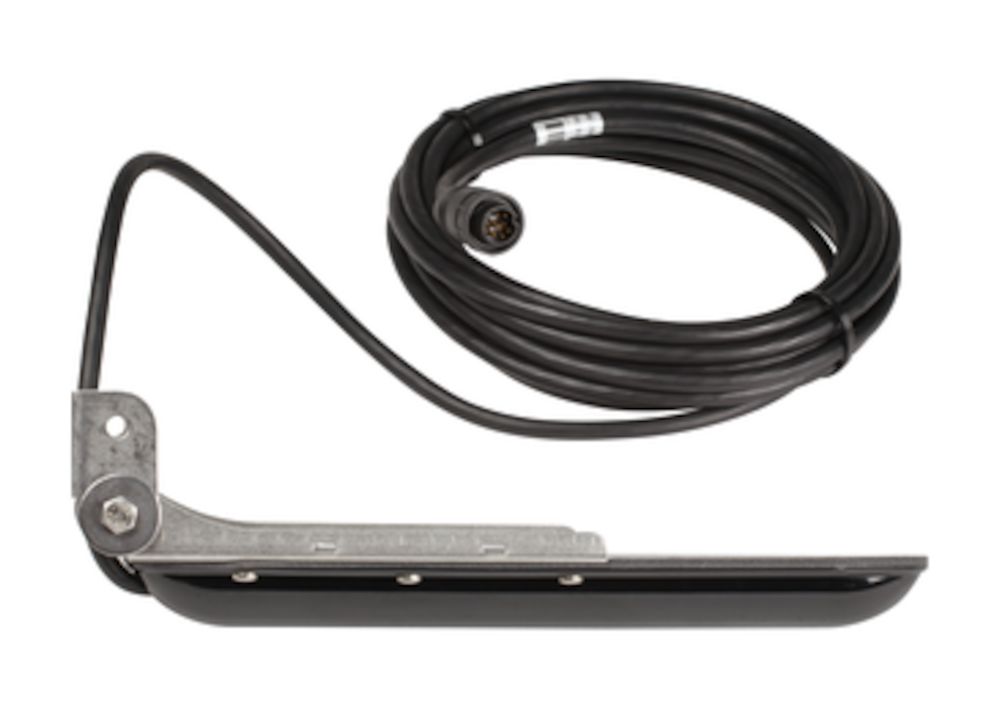

  • Optional transducers include AIRMAR® TM150M, single-channel CHIRP transducer and existing StructureScan HD transducers.
  • Plug-and-play compatibility with Simrad NS Series multifunction displays.
  • Three built-in Ethernet ports allow for quick and convenient networking without the need for an extra Ethernet networking module

What's in the box?

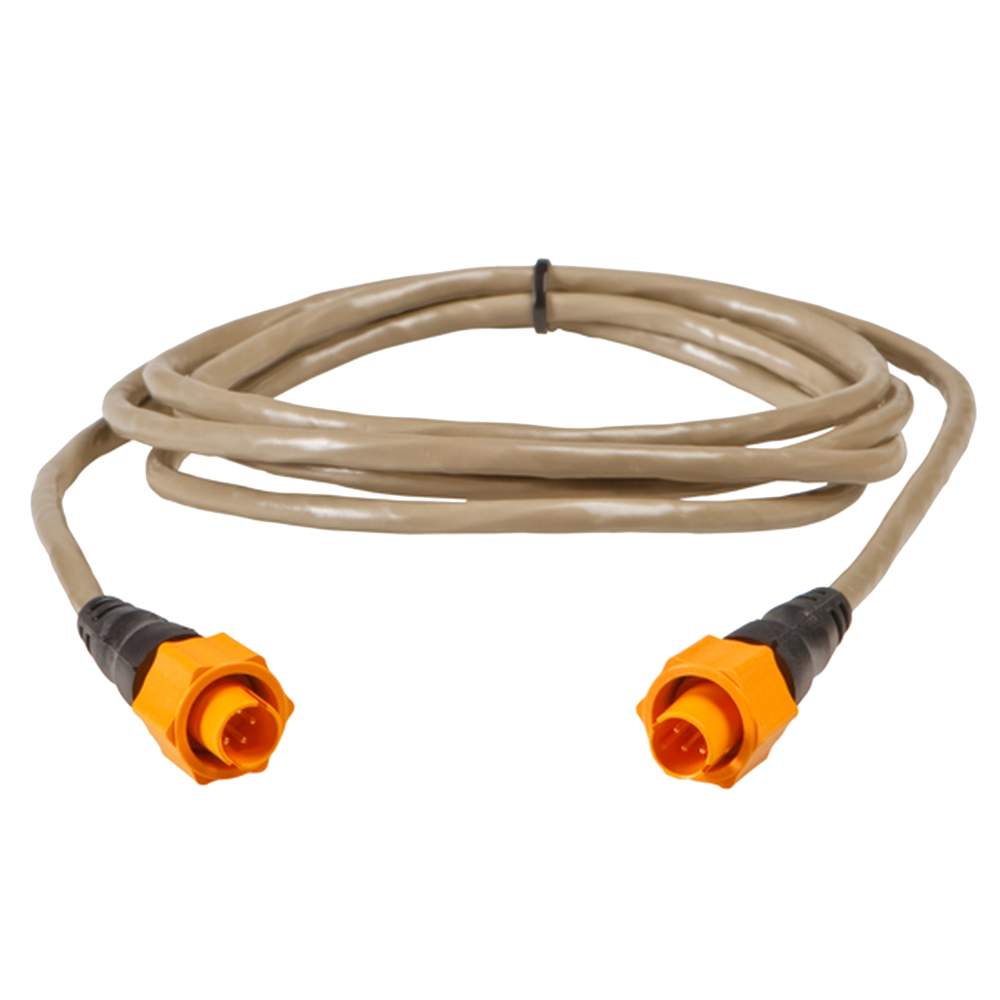

  • Ethernet Cable, 15ft
  • Power Cable, 4-Pin
