Simrad M5027 Monitor

SKU: 000-12726-001

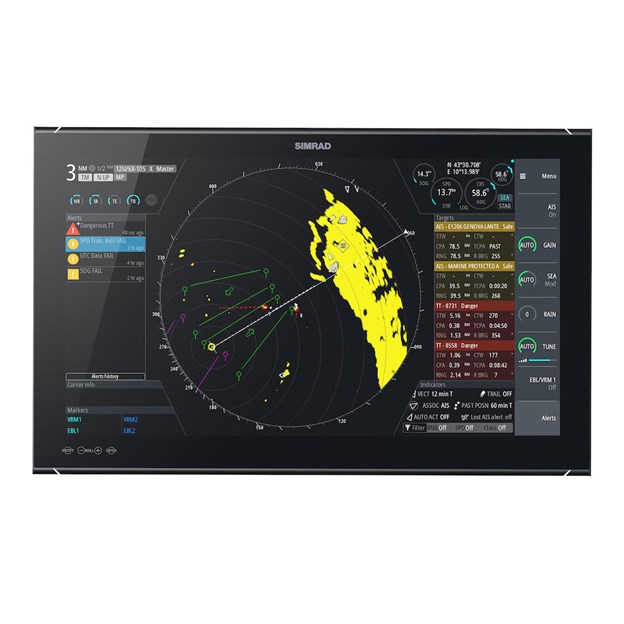

The 27-inch Simrad M5027 marine monitor is designed for use as part of a type-approved Simrad ECDIS or CAT 1 radar system. Optically bonded to eliminate fogging and provide maximum visibility, the M5027’s high-resolution display offers 300-nit brightness and flush mounting suitable for pilothouse or bridge installation.
$6,490

Product details

Full HD Widescreen
The M5027 marine monitor has a native resolution of 1920 x 1080 pixels (WUXGA), in 16:9 widescreen ratio suitable for use with wide-screen optimised Simrad radar systems and Simrad E5000 ECDIS systems.

Optically Bonded Display
The M5027's LCD panel is optically bonded to the display's glass front panel to eliminate fogging, while Anti-Reflective and Anti-Fingerprint coatings help to deliver optimal visibility in all conditions.

Flush-Mount Installation
Ideal for flush-mount installation in a pilothouse or bridge console, the M5027 has a low profile of just 8mm. Flush mounting is possible with the included rear brackets or front screws, and VESA mounting is supported with an optional bracket.

IEC60945 approved brackets are available separately

All-Glass Look
A seamless glass front panel incorporating capacitive touch-sensitive menu keys offers a clean and distraction-free look, and is suitable for side-by-side mounting of multiple displays without the interruption of raised bezels or controls.

Key Features

  • 27" LCD panel in 16:9 widescreen format
  • Full HD resolution 1920 x 1080-pixel display
  • Suitable for use as part of a type-approved Simrad radar system for CAT 1 SOLAS vessels (IEC62388 ed.1 compliant)
  • Suitable for use as part of a type-approved Simrad E5000 ECDIS system (IHO S-52 colour calibrated)
  • Optically bonded to eliminate fogging
  • Low profile (8mm) flush-mount installation
  • All-glass front panel with touch sensitive menu keys
  • IPX6 water resistant when flush mounted
  • IEC60945 approved brackets are available separately

What's in the box?

  • MO16/19/24 Connectors Kit
  • M5027 BEZELS,SILVER & BLACK,2PCS EACH
  • M5027,DASH SEAL KIT
