P3007 GPS

SKU: 000-14128-001

The Simrad® P3007 GPS System offers a 7-inch superior colour display with easy touch control, position data accuracy, and reliability while enabling distribution of position, course, speed, time and navigation data to other bridge systems such as radar, ECDIS, and the autopilot. Offering a flexible installation by supporting a wide variety of I/O signal types, and a high clarity and contrast viewing distance with great data visibility.
$1,650

Product details

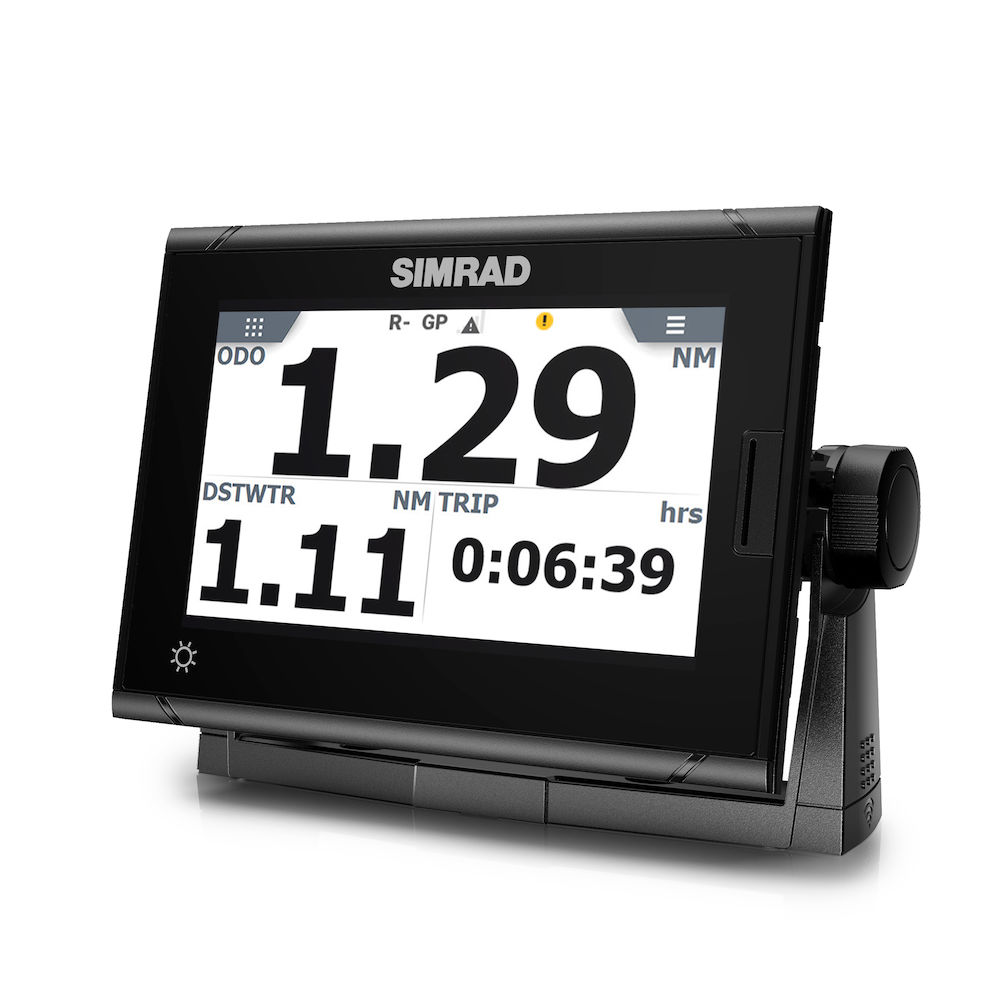

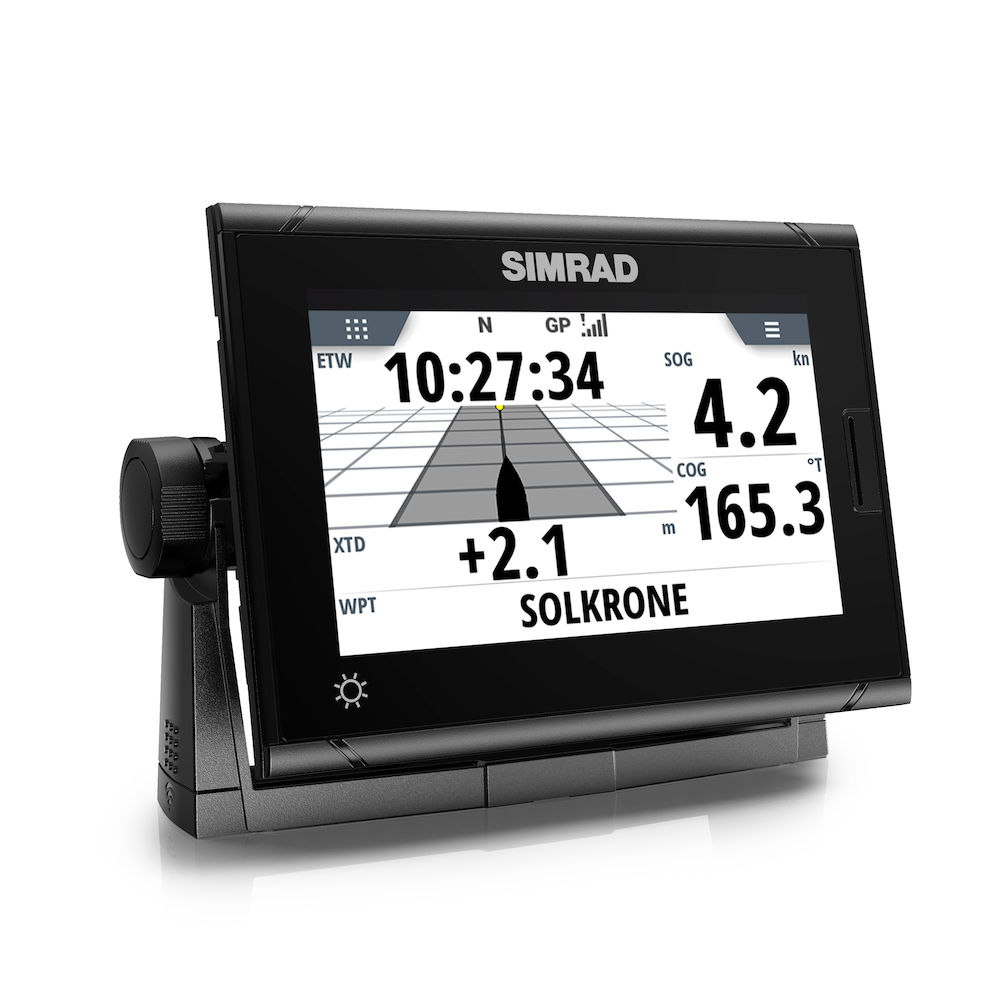

P3007 GPS : 7-Inch color touch GPS display

Product Overview
The Simrad® P2005 and P3007 GPS System Series offers a 5- or 7-inch superior colour display with easy touch control, position data accuracy, and reliability while enabling distribution of position, course, speed, time and navigation data to other bridge systems such as radar, ECDIS, and the autopilot. Offering a flexible installation by supporting a wide variety of I/O signal types, and a high clarity and contrast viewing distance with great data visibility. Both a GPS Navigator and GPS compass in one solution, the P2005 and P3007 GPS System Series serves as a replacement for the MX612, MX610, and GN70 products, both systems work with a direct antenna connection. These new GPS Systems are scalable with a MX Junction Box 610 or 612.

Both display sizes include value features such as:

  • Routes and waypoints
  • Trip log
  • Position page
  • Heading page
  • AIS plot
  • Configurable digital data pages
  • GPS + GLONASS
  • External pot-meter dimming (optional)
  • Sensor data on Analog input, Serial ports, Nmea2000, Ethernet (IEC61162-450), Pulse Speed log input

P2005
The P2005 GPS system is geared towards workboats, the light professional segment, and other non-SOLAS vessels. The P2005 can be paired with a wide range of Simrad GPS antenna or GPS compasses. A Serial port expansion with optional junction box is also supported.

P3007
The P3007 GPS system is IMO approved for SOLAS vessels and, when paired with high-precision antennas, the P3007 system can be configured for use as a DGPS, THD (Transmitting Heading Device). With an optional junction box, the system can be configured with up to 12 Nmea0183 serial ports.

Key Features

  • Easy to operate
  • Touch display
  • Intuitive familiar menu system
  • Great viewing distance, clarity and contrast. Great data visibility
  • Flexible installation options
  • Ethernet/LWE (IEC61162-450)
  • Replacement for MX612/MX610/GN70
  • Works with direct antenna connection
  • Scalable system with MX Junction box 610 or 612
  • GPS Navigator and GPS Compass in one solution

Specifications

Display
Display Resolution
800 x 480
