Simrad P2005 GPS System

SKU: 000-14129-001

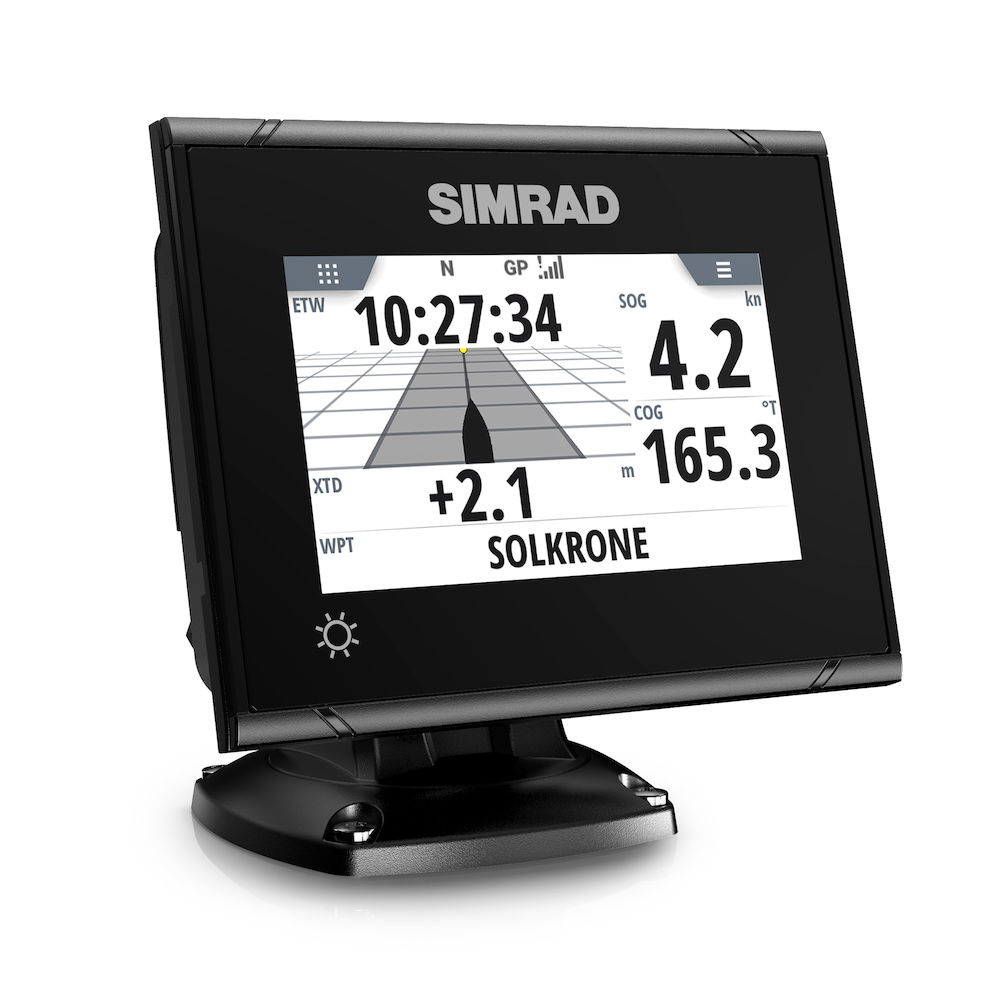

The Simrad® P2005 GPS System Series offers a 5-inch superior colour display with easy touch control, position data accuracy, and reliability while enabling distribution of position, course, speed, time and navigation data to other bridge systems such as radar, ECDIS, and the autopilot. Offering a flexible installation by supporting a wide variety of I/O signal types.

Find a dealer

Product details

The Simrad® P2005 GPS System offers a 5-inch superior colour display with easy touch control, position data accuracy, and reliability while enabling distribution of position, course, speed, time and navigation data to other bridge systems such as radar, ECDIS, and the autopilot. Offering a flexible installation by supporting a wide variety of I/O signal types, and a high clarity and contrast viewing distance with great data visibility.

Both a GPS Navigator and GPS compass in one solution, the P2005 and P3007 GPS System Series serves as a replacement for the MX612, MX610, and GN70 products, both systems work with a direct antenna connection. These new GPS Systems are scalable with a MX Junction Box 610 or 612.

The P2005 GPS system is geared towards workboats, the light professional segment, and other non-SOLAS vessels. The P2005 can be paired with a wide range of Simrad GPS antenna or GPS compasses. A Serial port expansion with optional junction box is also supported.

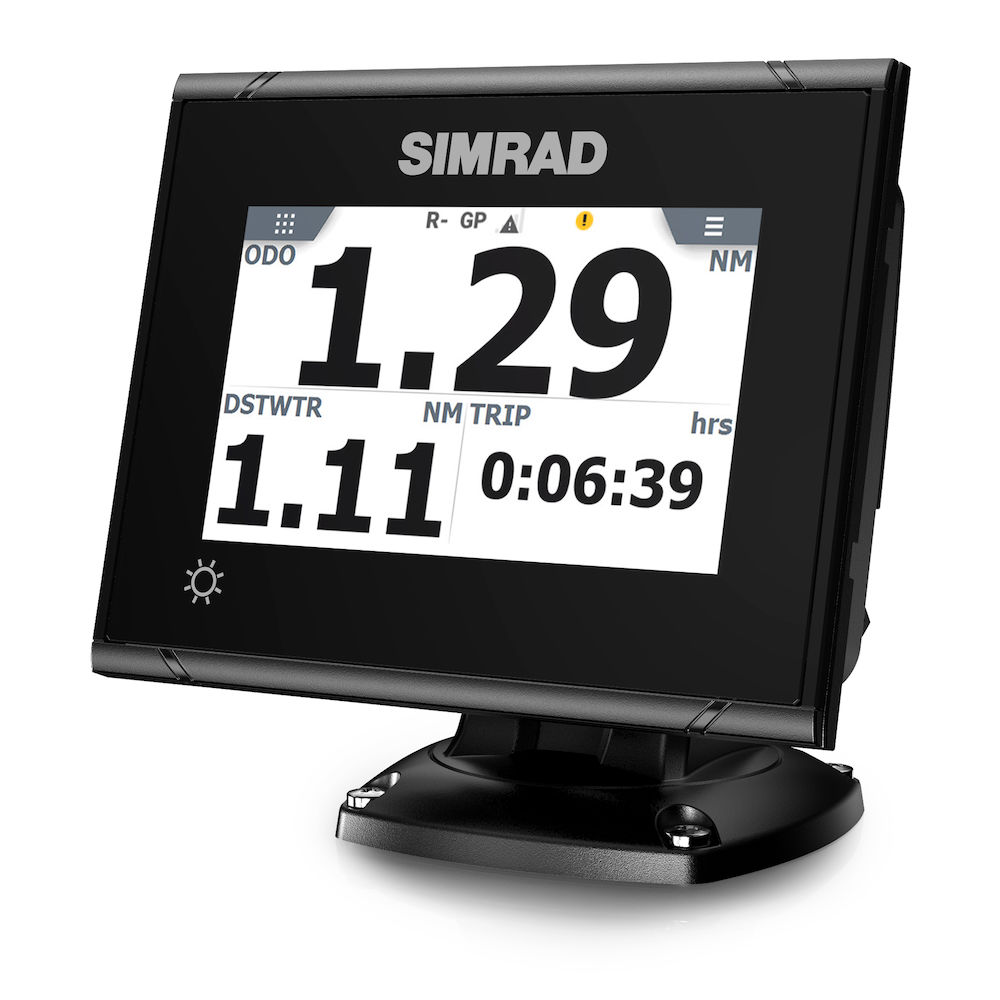

Both display sizes include value features such as; routes & waypoints, trip log, position & heading page, auxiliary AIS plot, configurable digital data pages, GPS + GLONASS, and an optional external pot-meter dimming feature.

Sensor data on Analog input, serial ports, Nmea2000, Ethernet (IEC61162-450), and a pulse speed log input are also included.

Key Features

  • Routes and waypoints
  • Trip log
  • Position page
  • Heading page
  • Auxiliary AIS plot
  • Configurable digital data pages
  • GPS + GLONASS
  • External pot-meter dimming (optional)
  • Sensor data on: Analog input. Serial ports, Nmea2000, Ethernet (IEC61162-450), Pulse Speed log input

What's in the box?

  • N2K-PWR-RD Network Power Node

Specifications

Operating Temperature Range
- 15° to +55° C (5° to 131° F)
Storage Temperature Range
- 20° to +60° C (4° to 140° F)
Position Accuracy
< 3 metres
Time to First Fix
< 60 s typical
Screen Brightness
> 1200 nits
Weight
0.54 kg (1.18 lbs) display only
Compass Safe
0.5m (1.64 ft)
NMEA 2000 Connectivity
1 x Micro-C, 1 LEN
Supply Voltage
12/24 VDC (9.0 - 31.2 VDC min- max)
Dimensions W x H x D
152 x 120 x 58 mm (6 x 4.7 x 2.3 in) display only exc bracket
Warranty Period
2 Years
Recommended Fuse Rating
3 Amp
GPS Receiver Channels
32
Display Size
5 inches
N2K PGNs
59392 ISO acknowledgement, 59904 ISO request, 60928 Address claim, 126208 Group function, 126992 System time, 126993 Heartbeat, 126996 Product info, 126998 Configuration info, 127233 MOB notification, 127237 Heading / track control, 127245 Rudder, 127250 Vessel heading, 127251 Rate of turn, 127252 Heave, 127257 Attitude, 127258 Magnetic variation, 127488 Engine parameters (rapid update), 127489 Engine parametres (dynamic), 127493 Transmission parameters (dynamic), 127503 AC Input status, 127504 AC output status, 127505 Fluid level, 127506 DC detailed status, 127507 Charger status, 127508 Battery status, 127509 Inverter status, 128259 Speed, water referenced, 128267 Water depth, 128275 Distance log, 129025 Position rapid update, 129026 COG SOG, rapid update, 129029 GNSS Position data, 129033 Time & date, 129038 AIS Class A position report, 129039 AIS Class B position report, 129040 AIS Class B extended position report, 129041 AIS aids to navigation, 129283 Cross track error, 129284 Navigation data, 129285 Navigation - route WP information, 129539 GNSS DOP's, 129540 AIS Class B Extended Position Report, 129545 GNSS RAIM output, 129549 DGNSS corrections, 129551 GNSS differential correction receiver signal, 129793 AIS UTC & date report, 129794 AIS ATON's, 129798 AIS SAR aircraft position report, 129801 Cross track error, 129802 AIS safety related broadcast message, 129809 AIS Class B "CS" static data report part A, 129810 AIS Class B "CS" static data report part B, 130067 Route & WP service - route WP name & position, 130074 Route & WP service - WP list - WP name & position, 130306 Wind data, 130310 Environmental parameters, 130311 Environmental parameters, 130312 Temperature, 130313 Humidity, 130314 Actual pressure, 130316 Temperature, extended range, 130576 Small craft status, 130577 Direction data, 130578 Vessel speed components. NOTE: Relevant sensor must be connected.
Power Consumption typical
6.6 watts
Power Consumption max
8.4 watts
Display Resolution
800 x 480
Languages
English
Mounting Type
Flush or bracket mount
Waterproofrating
IPX 7 when flush mounted
Viewing Angles
Left/right: 70°, top: 50°, bottom: 60°
Humidity
Meets IEC60945
Shock Vibration
Meets IEC60945
Heading Sensor Data Protocol
NMEA 0183, NMEA 2000
Interface
NMEA 2000, NMEA 0183, Lightweight Ethernet (LWE)
NMEA 0183 Sentences supported
Transmit: DBT, DPT, GGA, GLC, GLL, GSA, GSV, HDG, MTW, MWD, MWV, RMB, RMC, ROT, RPM, RSA, THS, TRD, VLW, VHW, VTG, XDR, XTE, ZDA with relevant sensors connected. Receive: AAM, ABP, ACK, ACN, BOD, BWC, BWR, DBT, DPT, DSC, DSE, DTM, GGA, GLL, GNS, GSA, GSV, HBT, HDG, HDM, HDT, MOB, MTW, MWD, MWV, RMC, ROT, RPM, RSA, RTE, THS, TRD, VBW, VDM, VDO, VLW, VHW, VTG, WPL, XDR, ZDA.
Update rate
up to 10 Hz
Backlight Color
white
